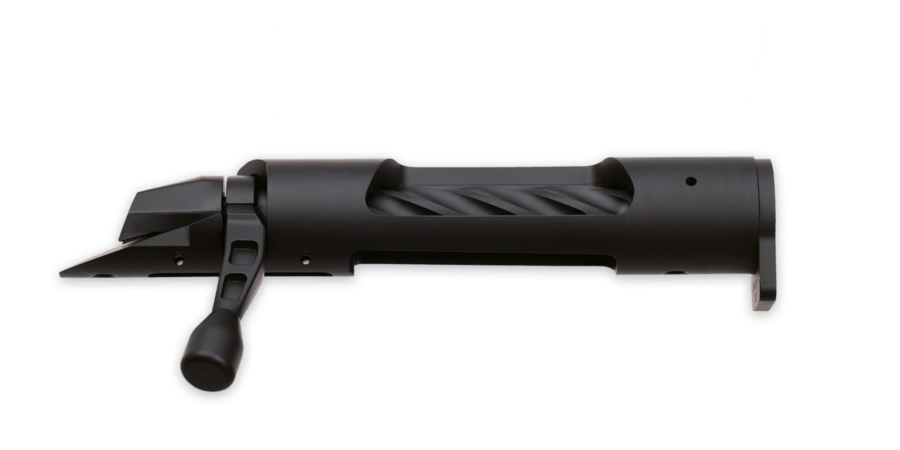

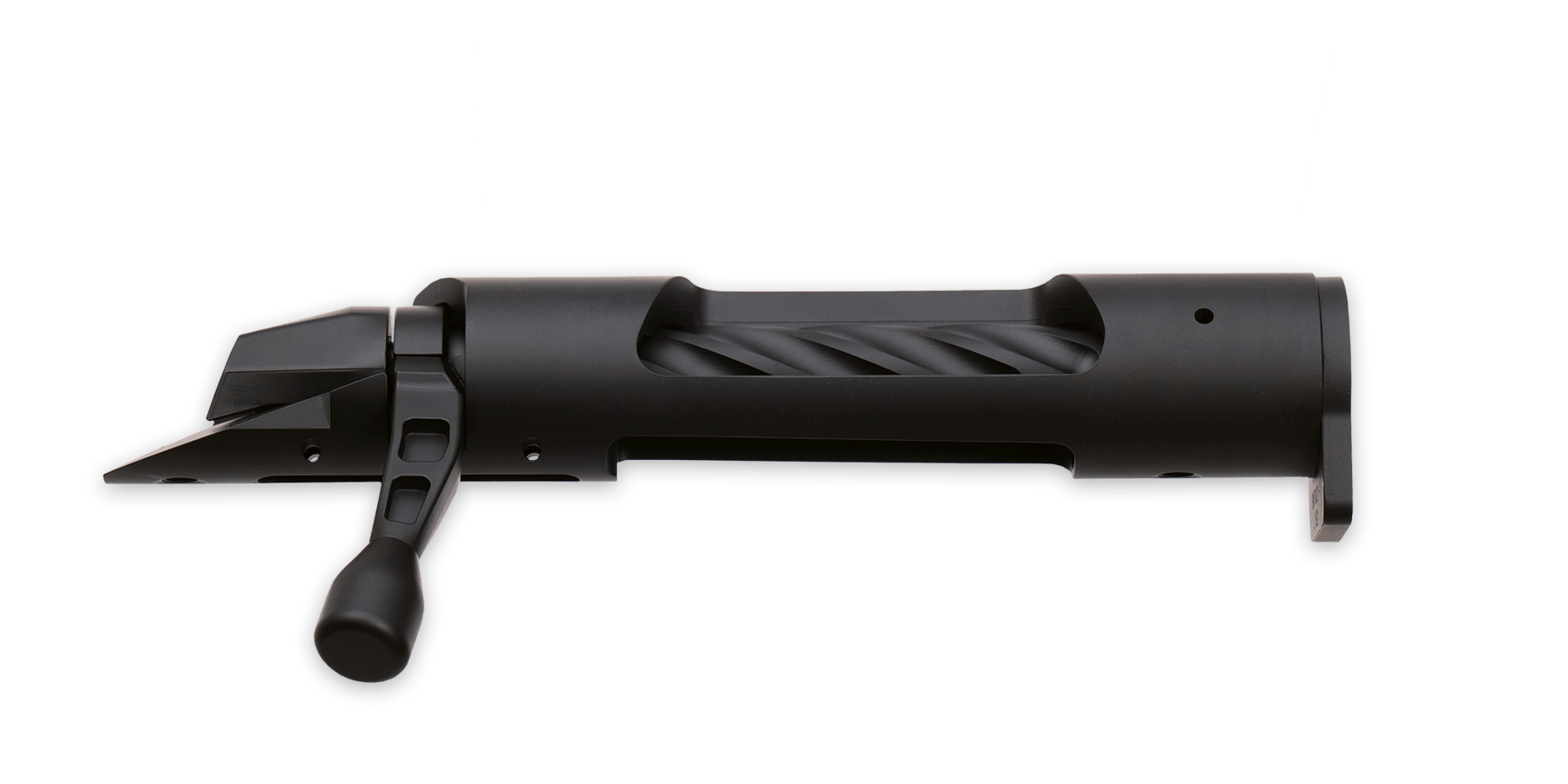

Model 307™ Builders Action

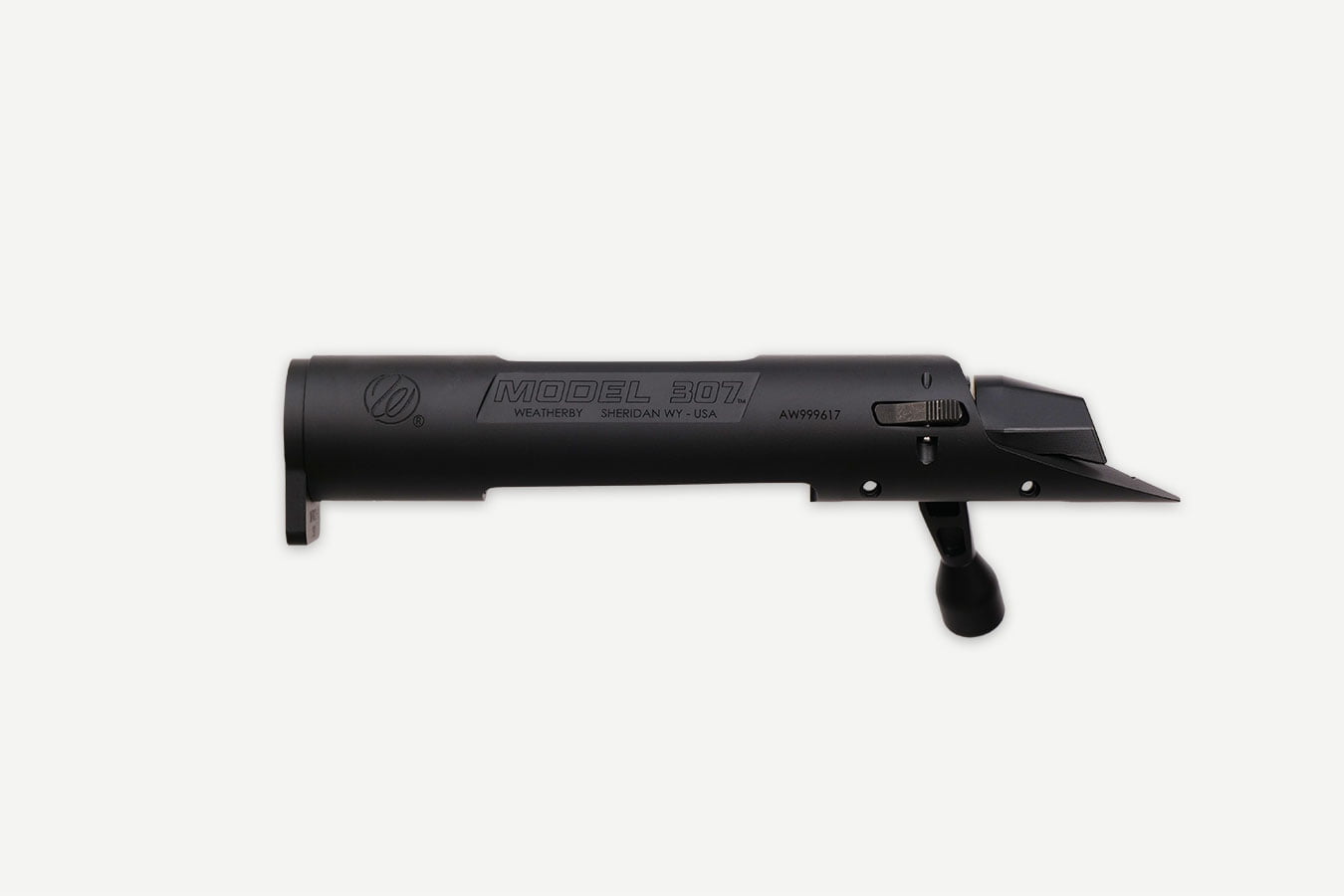

Model 307™ Builders Action - Image 2

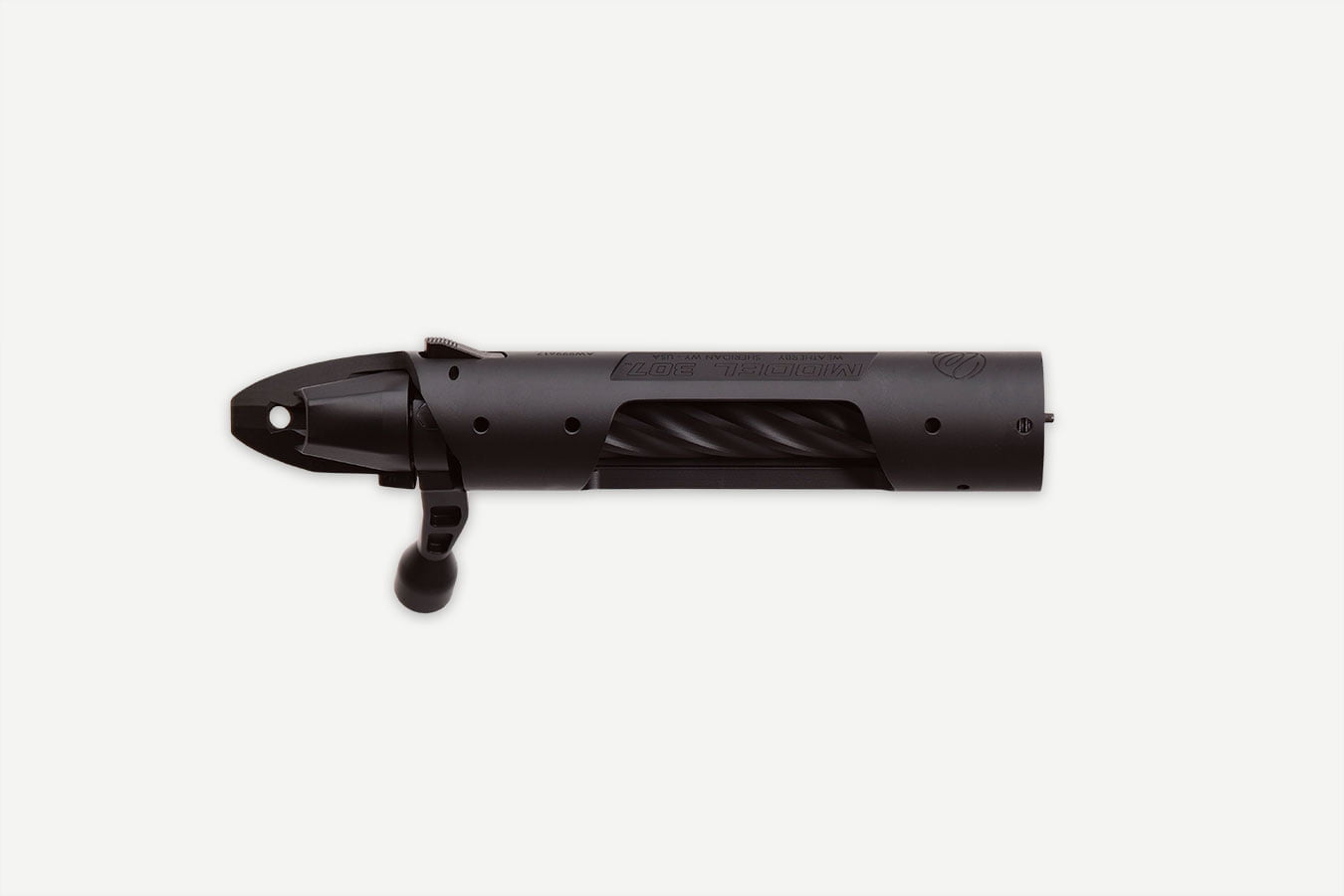

Model 307™ Builders Action - Image 3
Model 307™ Builders Action - Image 4

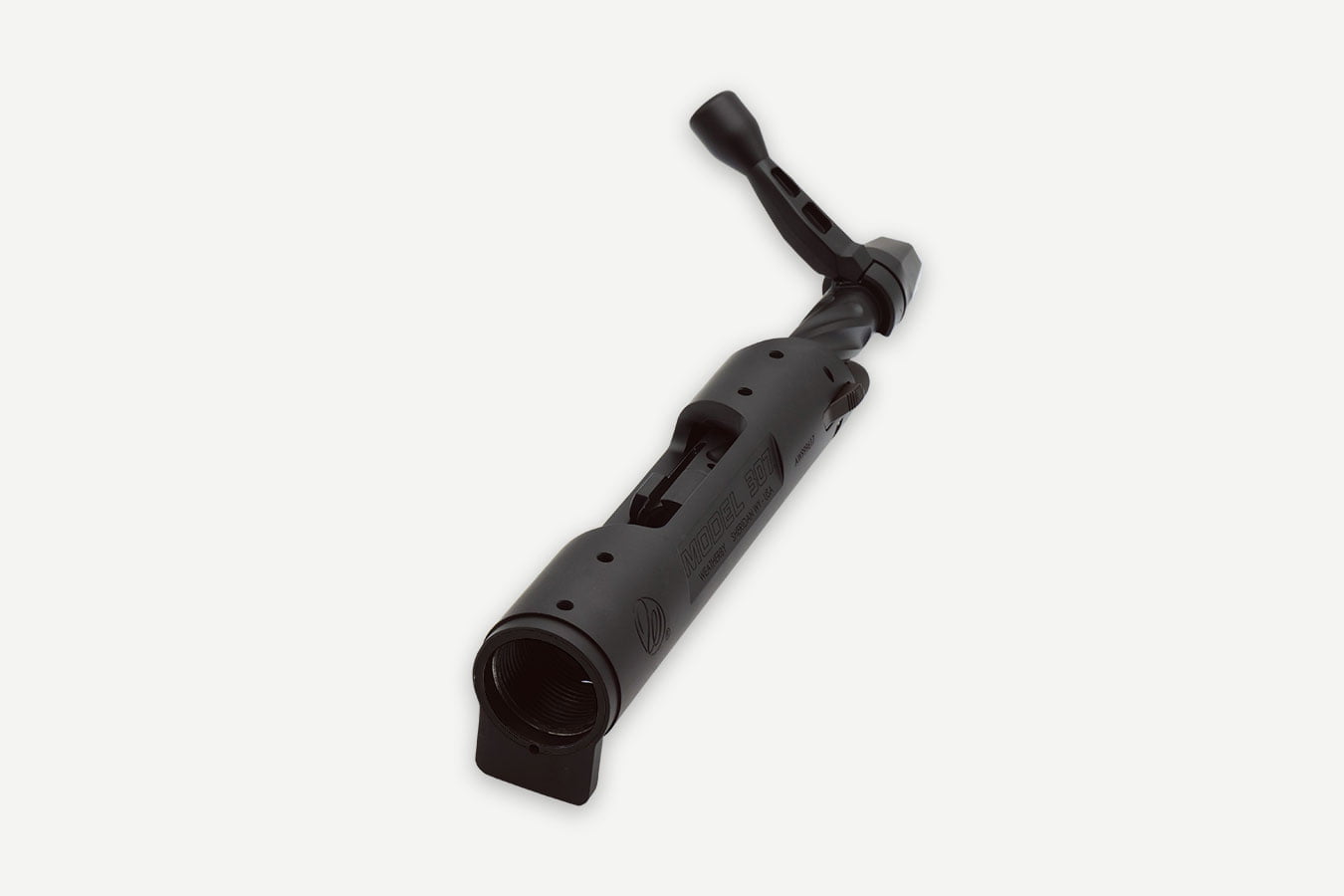

Model 307™ Builders Action - Image 5

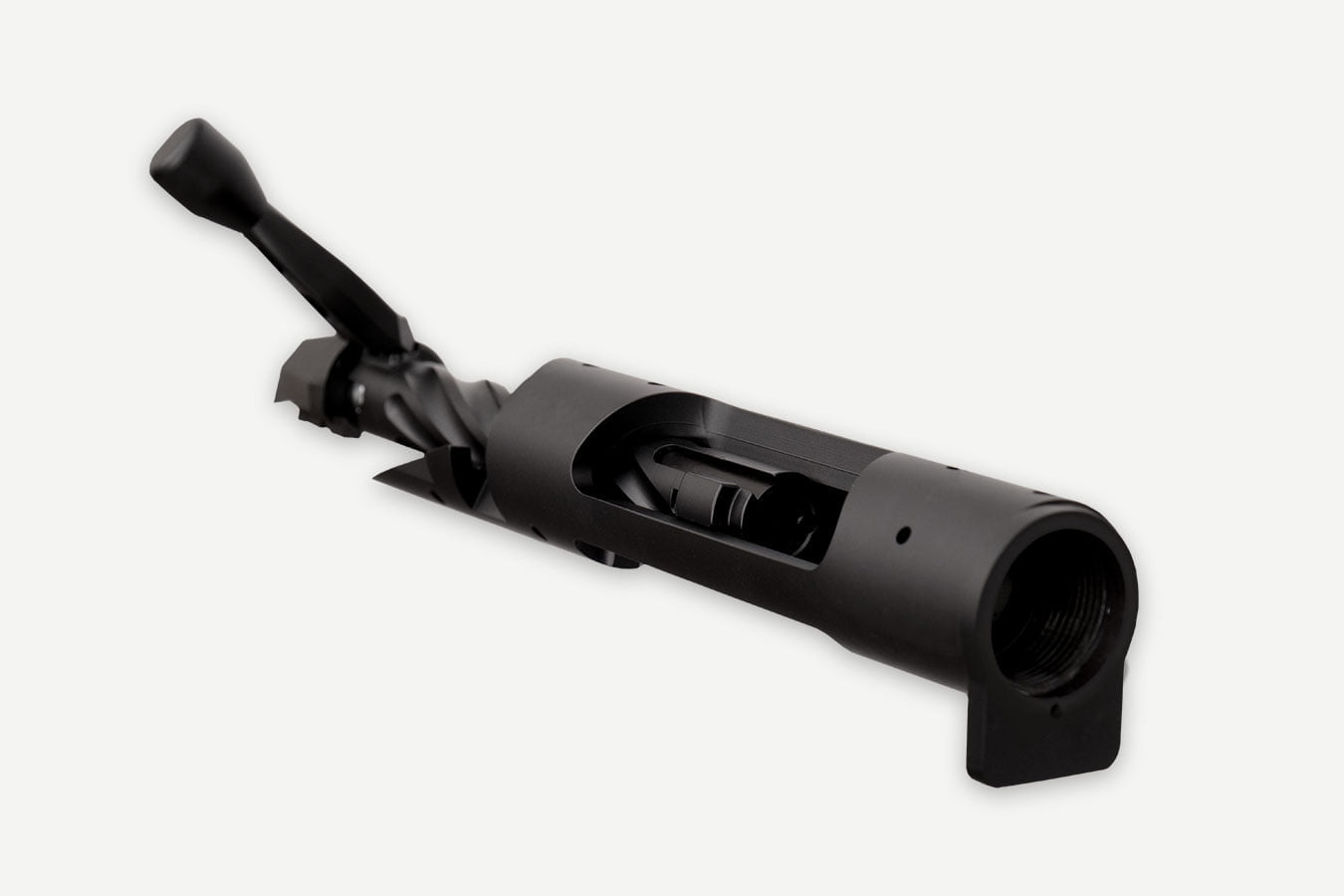

Model 307™ Builders Action - Image 6
Model 307™ Builders Action - Image 7

Model 307™ Builders Action

(4 customer reviews)

$749.00

Weatherby’s first new action in over 50 years. The Model 307 was purpose built to accommodate the vast offerings of stocks, triggers, rails, mounts, and bottom metals that exist in the marketplace. The 2-Lug bolt features a convenient “tool-less” takedown for easy disassembly and maintenance.  Shooters can expect the same precision craftsmanship that Weatherby has delivered since 1945.

FINISH

Bolt / Bolt Knob  – Graphite Black Cerakote

TECH SPECS

Overall Length
Short Action – 7.9″
Long Action – 8.7″
Weight
Short Action – 1.65 lbs
Long Action – 1.78 lbs
Bolt Face Sizes
Short Action Standard – .473″
Long Action Standard – .473″
Long Action Magnum – .543″
Bolt Throw
90 degree throw
Bolt Knob Threads
5/16″-24
Headspace
.899″ +/- .000 (Bolt Face to Recoil Lug)
Breech Dimensions (Counterbore)
.740″ depth (measured from Tenon Shoulder)
.715″ inner diameter
Tenon Threads
1-1/16″-16, .880” long (Standard 700®)
Action Screws
1/4″-28
Mag Box Lengths
Short Action – 2.97″
Long Action – 3.95″
Magwell
Wyatt’s Outdoor Extended Length

SKU: 3WB Categories: , Tag:
Made in the USAProudly Made in USA

Description

SPECIFICATIONS

Start Your Custom Build with the Weatherby Model 307 Action

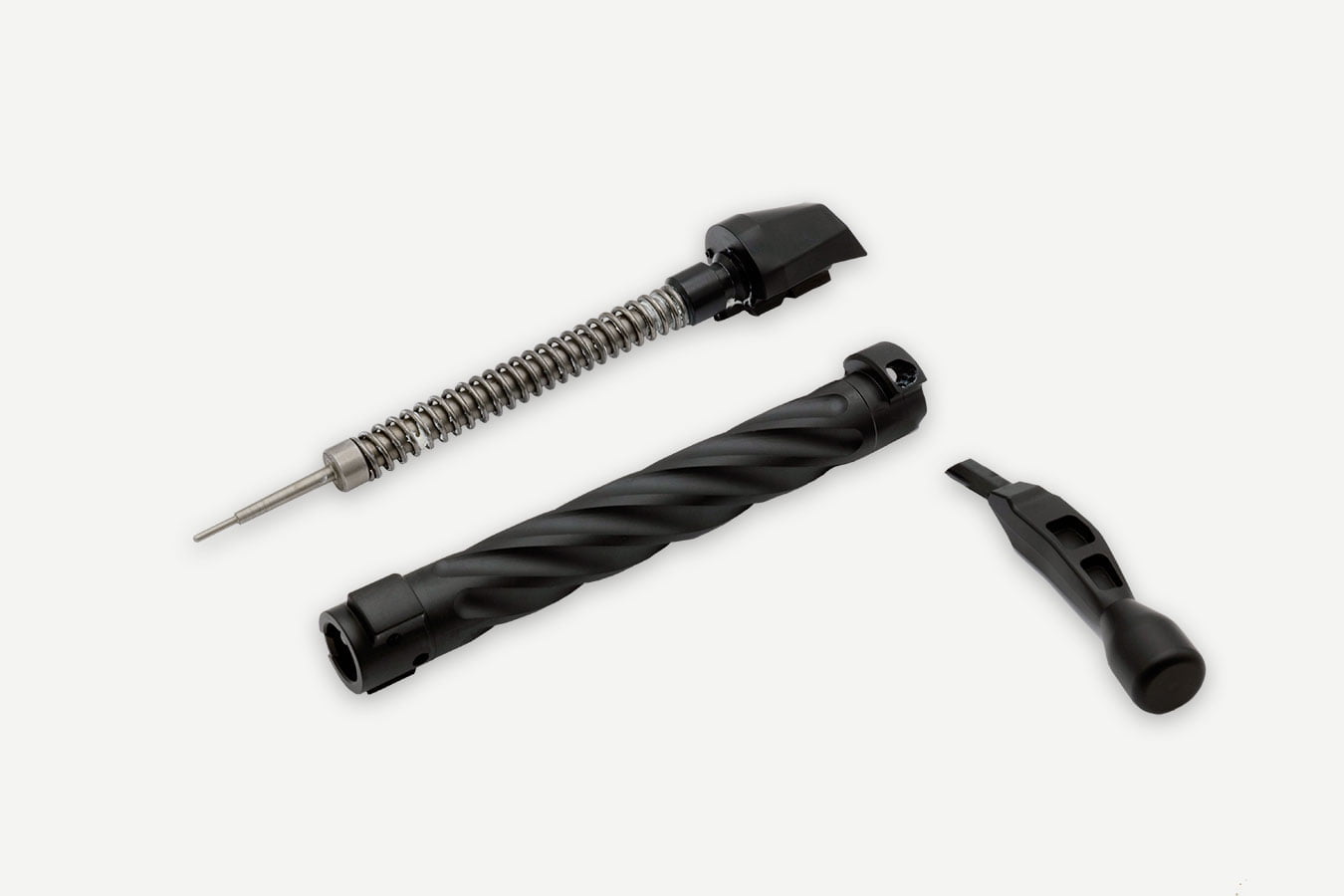

The Model 307 action features a spiral fluted bolt with a reliable M16 extractor. That means positive extraction and smooth cycling shot after shot. The tool-less takedown feature is ideal for in the field maintenance and at home cleanings. The bolt knob is threaded (5/16×24 thread pitch) and ready for an aftermarket knob of your choice.

With a similar footprint to the popular Remington® 700® platform, Model 307 is compatible with most aftermarket 700 accessories, including triggers, stocks, and bottom metals. This gives the builder unlimited ability to build a truly custom rifle.

The bolt release button was designed to sit high on the receiver to make sure it fits Rem 700 aftermarket stocks and chassis.

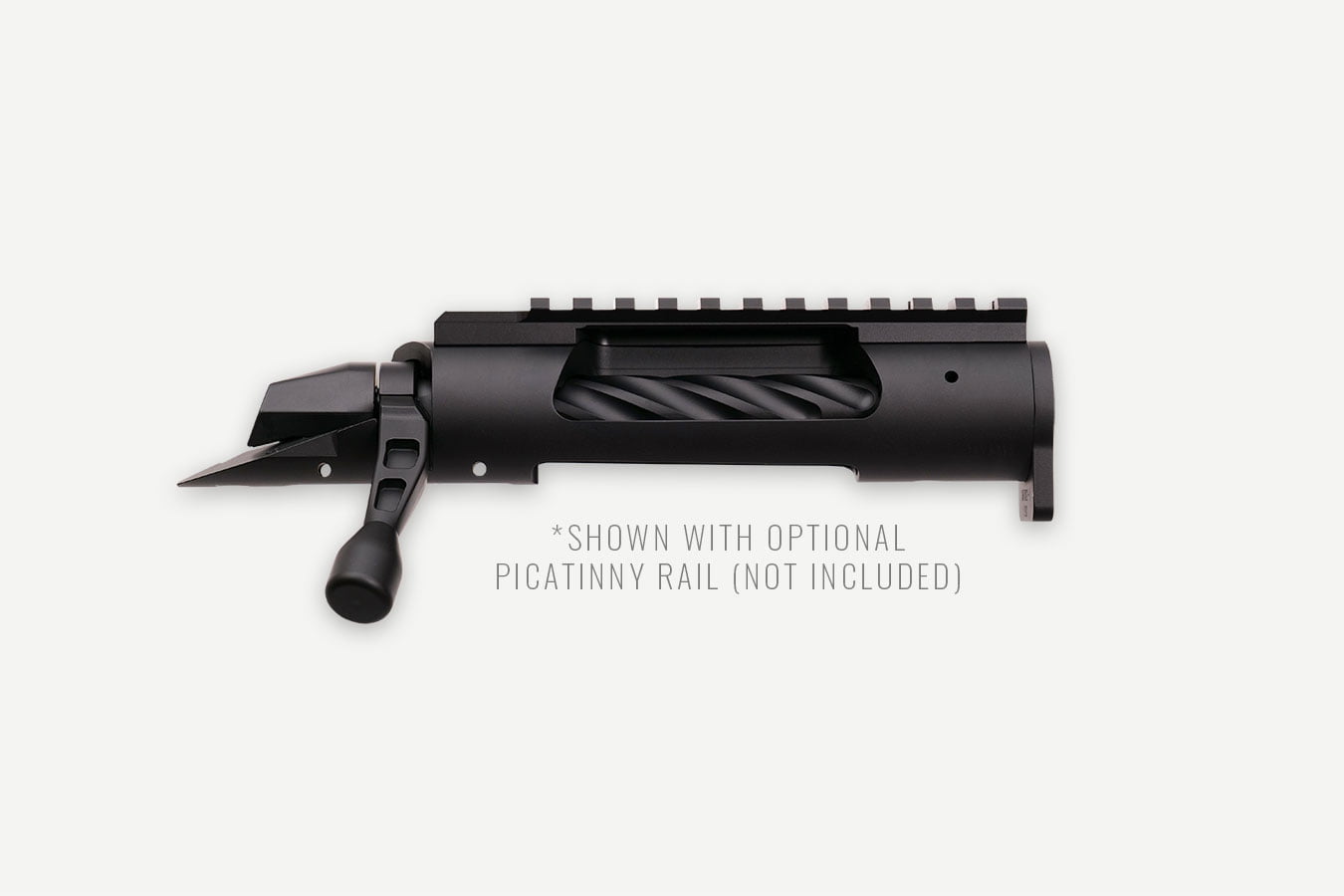

The action is tapped and ready for scope mounts or a picatinny rail, it is threaded for 8-40 screws and is compatible with Stiller/Savage® mounts.

FeatureVideoPlaceholder_Model307launch_Thumbnail-1000×520

Model 307™ Builders Action Videos

Additional information

Action Length

, , , ,

4 reviews for Model 307™ Builders Action

  1. Wes –

    Where will you find a custom action built with these features for this price point? There are no others in this price range that can compare.

    Sure, we’d love to have stainless steel – nitride coated finish, amongst other things, but for the money – you simply cannot beat them.

    Future things weatherby might consider: Nitride Coating the receiver ONLY, along with quality trigger pins and a solid recoil lug pin instead of a spring pin.

    All in all, you take away the gripes, you cannot find anything close to this quality at the price point that is readily available.

  2. Ken Charled –

    Great action would use them a hole lot more on standard builds if they offered it in stainless steel polished like the defiance actions witch are my go too..

  3. Jonathan Riddle –

    I just received my 307 builders action. As a life long shooter and competitor I have seen many different actions. The 307 action is extremely well built. Weatherby did their homework and hit a home run with the 307. Great action!

  4. Ty Buck (verified owner) –

    I have built a lot of 700-type rifles, but the improvements and craftsmanship that Weatherby has put into these actions are amazing.
