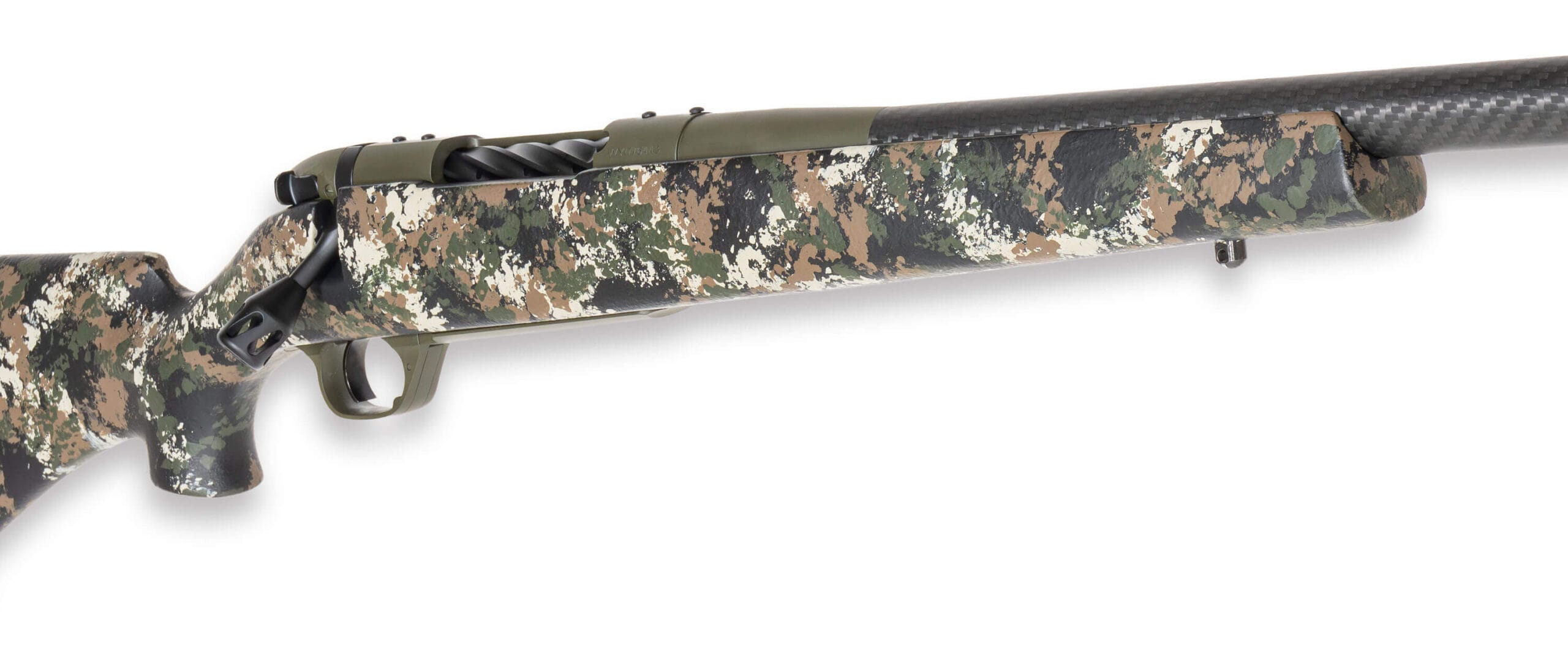

Mark V® Carbon Compact
Mark V® Carbon Compact - Image 2
Mark V® Carbon Compact - Image 3

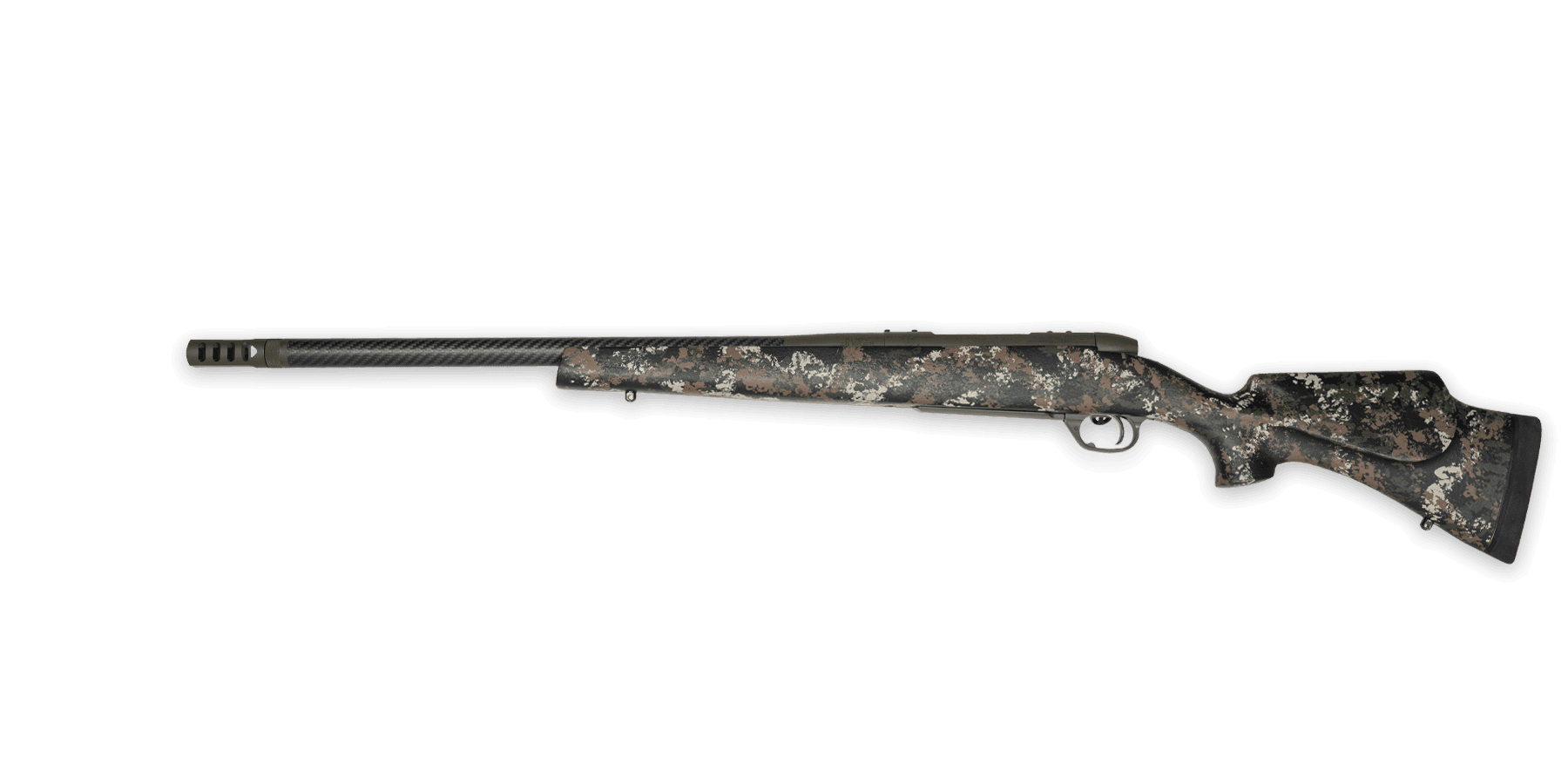

Mark V® Carbon Compact

$2,649.00

The Mark V Carbon Compact is a lightweight carbon barrel rifle built with a shorter length of pull for smaller statured shooters. It features the lighter 6-Lug Standard Action and is chambered in some of the most popular recoil friendly cartridges in the industry. The Monte Carlo inspired stock design helps manage recoil by directing force away from the shooter’s face, keeping them aligned and on target. The BSF carbon barrel delivers unmatched accuracy and comes with Weatherby’s Accubrake DST™ (Directional Self-Timing Brake).

FINISH

Carbon Barrel – BSF Carbon Barrel
Trigger Guard / Receiver – OD Green Cerakote
Bolt / Bolt Knob / Safety – Graphite Black Cerakote
Stock – Hand-laid, raised Monte Carlo fiberglass stock Black with brown, green and white sponge accents

TECH SPECS

View Tech Specs

SKU: MCC01 Categories: , Tag:
Made in the USAProudly Made in USA

Description

SPECIFICATIONS

Designed with a shorter length of pull

The Carbon Compact was designed for shooters who prefer a shorter length of pull (13″ vs our standard 13.625″), offering a natural and confident shoulder mount. The modified Monte Carlo stock is engineered to direct recoil away from the shooter’s face, providing a better shooting experience and reduced felt recoil. Each stock is hand-painted in Sheridan, Wyoming, and the receiver and metalwork feature a Cerakote finish that delivers durable protection in demanding conditions.

The deep spiral fluted bolt reduces weight and decreases bearing surface area, resulting in a smooth and consistent bolt cycle. The 54-degree bolt lift supports fast cycling and maintains generous scope clearance.

The Carbon Compact is equipped with shorter BSF barrels, and the threaded muzzle comes with an Accubrake DST. (⅝-24)

Each rifle features an adjustable TriggerTech trigger that allows shooters to fine-tune pull weight.

BSF CARBON FIBER BARREL

THE PINNACLE OF CARBON BARRELS

BSF Barrels use carbon fiber in a way that no other carbon barrel manufacturer does, leading to unmatched accuracy and heat dispersion properties.

TENSIONED BARREL

After BSF turns down a 416R stainless steel match barrel they sleeve it with carbon fiber and load it under tension. Because it’s under tension, as the barrel heats up it keeps the rifling straighter, resulting in a stiffer, more rigid barrel. Most competitors use a wrapping method that has been proven to trap heat and cause delamination.

COOLER BARREL - CONSISTENT GROUPS

With BSF’s proprietary method, 95% of the carbon fiber does not touch the contoured barrel, creating air gaps and allowing air to foil around the steel and cool the barrel faster. The high quality carbon fiber is designed to move at the same expansion rate as the 416R stainless steel resulting in a vibration dampening effect. What does that mean? It means the carbon fiber absorbs the shock and vibration allowing more consistent groups.

FEATURES

Guaranteed Sub-Moa Accuracy

All Mark V® rifles are guaranteed to shoot a 3-shot group of .99” or less at 100 yards (SUB-MOA) from a cold barrel when used with Weatherby® factory or premium ammunition within Two-Years of Verified Purchase Date to Original Purchaser.

TriggerTech Trigger

TriggerTech’s trigger provides true zero-creep break, extremely short over-travel, and is externally adjustable. Precision cut stainless steel components ensure consistent trigger pulls from shot to shot in a safe, reliable, and corrosion resistant package.

Accubrake ST

By adding an Accubrake ST you will significantly reduce felt recoil up to 53%. Available in four different barrel diameters, with thread protector, for a perfect brake-to-barrel contour.

BSF Carbon Fiber Barrel

BSF Carbon Fiber Barrels are lightweight, accurate, and fast-cooling. BSF uses carbon unlike any other carbon barrel on the market today, 95% of the carbon fiber does not touch the match-grade stainless steel barrel creating air gaps that allow air to foil around the steel and cool the barrel faster.

54 Degree Bolt

The shortest in the industry (as compared to typical 90 bolt throw). Allows for faster chambering on follow-up shots and greater bolt-to-scope clearance.

Deep Fluted Bolt

A larger radius, deeper flute not only trims a bit more weight from the bolt body of the Mark V, it also increases the smoothness with which the bolt can be cycled.

Removable Bolt Knob

Allowing for customization and utility, the bolt handle of the Mark V is now threaded to accept a variety of bolt knobs

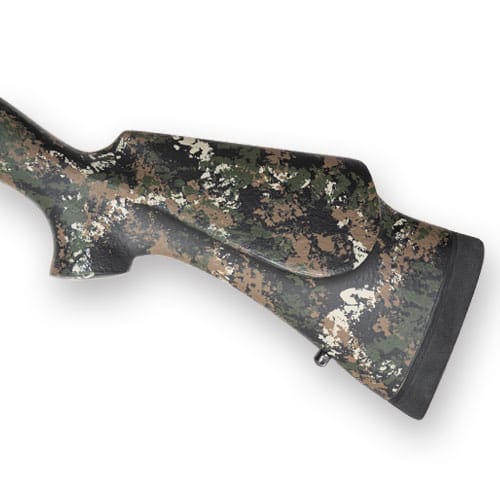

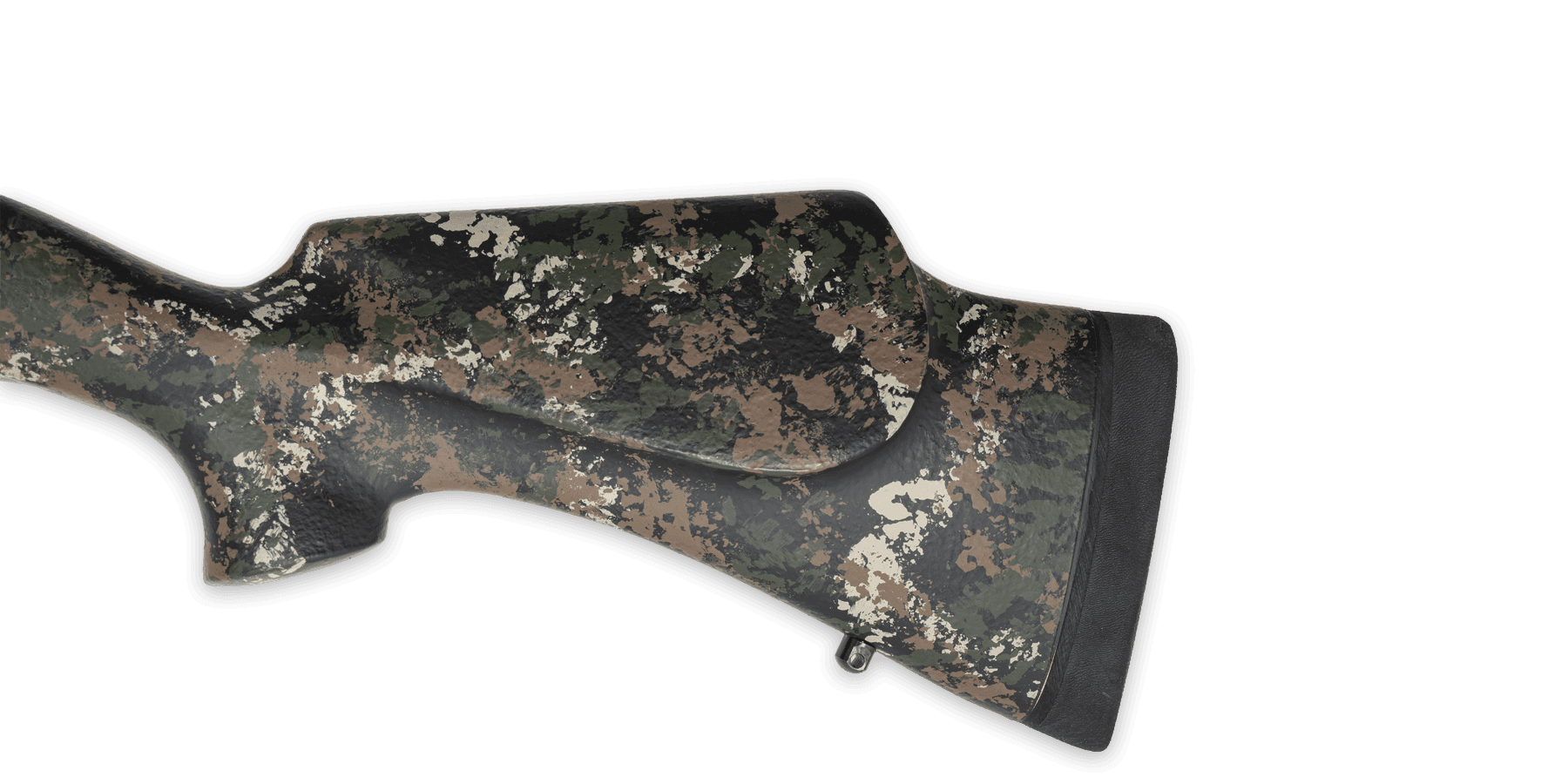

Compact Monte Carlo Stock

Featuring a shortened 13” length of pull, a slender forearm, and a slim grip with a subtle palm swell, along with a higher comb for improved scope-to-eye alignment. The recoil pad is designed with an ergonomic cant to provide a natural, secure fit against the shoulder.

Cerakote®

Cerakote is the industry leading thin-film ceramic coating. The Cerakote unique formula enhances physical properties including wear, corrosion, and chemical resistance while improving impact strengths, and hardness.

FEATURES

Guaranteed Sub-Moa Accuracy

All Mark V® rifles are guaranteed to shoot a 3-shot group of .99” or less at 100 yards (SUB-MOA) from a cold barrel when used with Weatherby® factory or premium ammunition within Two-Years of Verified Purchase Date to Original Purchaser.

TriggerTech Trigger

TriggerTech’s trigger provides true zero-creep break, extremely short over-travel, and is externally adjustable. Precision cut stainless steel components ensure consistent trigger pulls from shot to shot in a safe, reliable, and corrosion resistant package.

Accubrake ST

By adding an Accubrake ST you will significantly reduce felt recoil up to 53%. Available in four different barrel diameters, with thread protector, for a perfect brake-to-barrel contour.

BSF Carbon Fiber Barrel

BSF Carbon Fiber Barrels are lightweight, accurate, and fast-cooling. BSF uses carbon unlike any other carbon barrel on the market today, 95% of the carbon fiber does not touch the match-grade stainless steel barrel creating air gaps that allow air to foil around the steel and cool the barrel faster.

54 Degree Bolt

The shortest in the industry (as compared to typical 90 bolt throw). Allows for faster chambering on follow-up shots and greater bolt-to-scope clearance.

Deep Fluted Bolt

A larger radius, deeper flute not only trims a bit more weight from the bolt body of the Mark V, it also increases the smoothness with which the bolt can be cycled.

Removable Bolt Knob

Allowing for customization and utility, the bolt handle of the Mark V is now threaded to accept a variety of bolt knobs.

Compact Monte Carlo Stock

Featuring a shortened 13” length of pull, a slender forearm, and a slim grip with a subtle palm swell, along with a higher comb for improved scope-to-eye alignment. The recoil pad is designed with an ergonomic cant to provide a natural, secure fit against the shoulder.

Cerakote®

Cerakote is the industry leading thin-film ceramic coating. The Cerakote unique formula enhances physical properties including wear, corrosion, and chemical resistance while improving impact strengths, and hardness.

TECH SPECS

Caliber
Weight
Overall Length
Mag capacity
Barrel Contour
Barrel Threads
Barrel OAL
Twist Rate
Length of Pull
Drop @ Comb
Monte Carlo
Drop @ Heel
.22 CREEDMOOR6.1lbs.40“3+1#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:8“13“.875“.751.25“
.240 WBY MAG6.3lbs.44“4+1#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:7.5“13“.875“.751.25“
.243 WIN6.3lbs.44“4+1#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:7.5“13“.875“.751.25“
.25 CREEDMOOR6.1lbs.44“3+1#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:7.5“13“.875“.751.25“
25 WBY RPM6.1lbs.44“3+1#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:7.5“13“.875“.751.25“
.280 ACKLEY IMPROVED6.3lbs.44“4+1#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:9“13“.875“.751.25“
.308 WIN6.1lbs.42“4+1#4 CARBON5/8-2422" (20" barrel + 2" muzzle break)1:10“13“.875“.751.25“
6.5 CREEDMOOR6.3lbs.44“#4 CARBON#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:8“13“.875“.751.25“
6.5 WBY RPM6.3lbs.44“4+1#4 CARBON5/8-2424" (22" barrel + 2" muzzle break)1:8“13“.875“.751.25“
Caliber
Weight
Overall Length
Mag capacity
Barrel Contour
Barrel Threads
Barrel OAL
Twist Rate
Length of Pull
Drop @ Comb
Monte Carlo
Drop @ Heel
.22 CREEDMOOR
6.1lbs.
40“
3+1
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:8“
13“
.875“
.75
1.25“
.240 WBY MAG
6.3lbs.
44“
4+1
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:7.5“
13“
.875“
.75
1.25“
.243 WIN
6.3lbs.
44“
4+1
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:7.5“
13“
.875“
.75
1.25“
.25 CREEDMOOR
6.1lbs.
44“
3+1
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:7.5“
13“
.875“
.75
1.25“
25 WBY RPM
6.1lbs.
44“
3+1
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:7.5“
13“
.875“
.75
1.25“
.280 ACKLEY IMPROVED
6.3lbs.
44“
4+1
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:9“
13“
.875“
.75
1.25“
.308 WIN
6.1lbs.
42“
4+1
#4 CARBON
5/8-24
22" (20" barrel + 2" muzzle break)“
1:10“
13“
.875“
.75
1.25“
6.5 CREEDMOOR
6.3lbs.
44“
#4 CARBON
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:8“
13“
.875“
.75
1.25“
6.5 WBY RPM
6.3lbs.
44“
4+1
#4 CARBON
5/8-24
24" (22" barrel + 2" muzzle break)“
1:8“
13“
.875“
.75
1.25“

Mark V® Carbon Compact Videos

Additional information

Weight176 oz
Dimensions49 × 7 × 6 in
